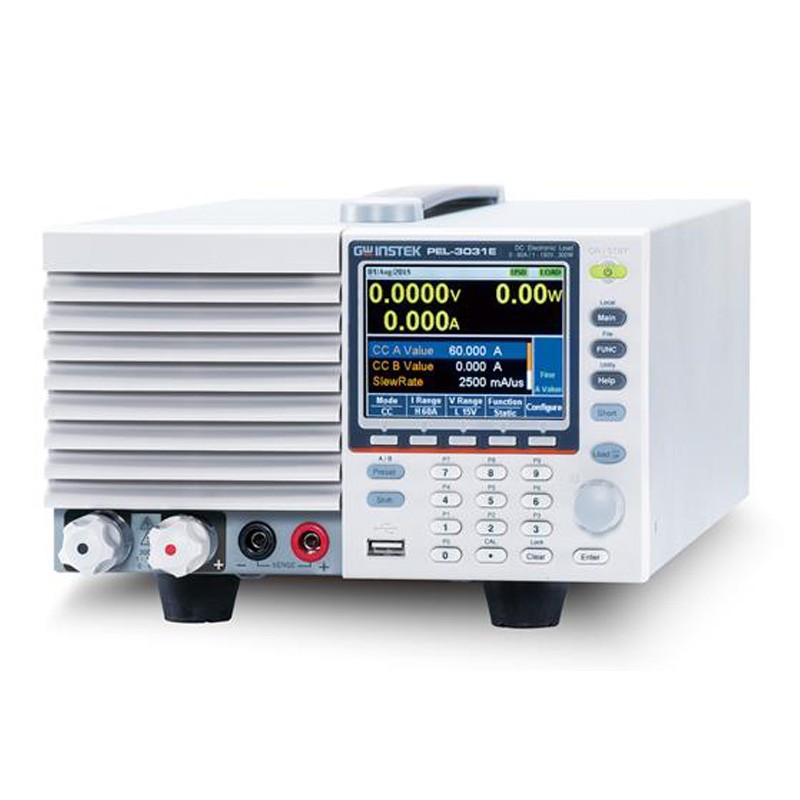

| 型號 | PEL-3031E | PEL-3032E |
| 功率 |
300W |
300W |
| 檔位 |
Low |
High |
Low |
High |
| 電壓 |
1~150V |
1~150V |
2.5~500V |
2.5~500V |
| 電流 |
0~6A |
0~60A |
0~1.5A |
0~15A |
|
最小操作電壓(DC) |
1V-6A |
1V-60A |
2.5V-1.5A |
2.5V-15A |
| 基本模式 |
| CC模式 | 范圍 |
0~6A |
0~60A |
0~1.5A |
0~15A |
| 設置范圍 |
0~6.12A |
0~61.2A |
0~1.53A |
0~15.3A |
| 分辨率 |
0.2mA |
2mA |
0.05mA |
0.5mA |
| 精確度 |
(T *1) ± (0.1% of set +0.1% of F.S) +Vin/500 kΩ (Full scale of High
range) |
(T *1) ± (0.1% of set +0.2% of F.S) +Vin/500 kΩ (Full scale of High
range) |
(T *1) ± (0.1% of set +0.1% of F.S) +Vin/500 kΩ (Full scale of High
range) |
(T *1) ± (0.1% of set +0.2% of F.S) +Vin/500 kΩ (Full scale of High
range) |
| CR模式 | 范圍 |
60S-0.002S(0.01666Ω~500Ω)(300W/15V);6S-0.0002S(0.1666Ω -5kΩ
)(300W/150V) |
6S-0.0002S(0.16666Ω~5KΩ)(300W/50V);0.6S-0.00002S(1.6666Ω -50kΩ
)(300W/500V) |
| 設置范圍 |
60S-0.002S(0.01666Ω~500Ω)(300W/15V);6S-0.0002S(0.1666Ω -5kΩ
)(300W/150V) |
6S-0.0002S(0.16666Ω~5KΩ)(300W/50V);0.6S-0.00002S(1.6666Ω -50kΩ
)(300W/500V) |
| 分辨率(30000
steps) |
0.002S(15V) ; 0.0002S(150V) |
0.0002S(50V) ; 0.00002S(500V) |
| 精確度 |
(T *1) ± (0.3% of set + 0.6S) + 0.002mS |
(T *1) ± (0.3% of set + 0.06S) + 0.002mS |
| CP模式 | 范圍 |
1~15V |
1~150V |
2.5~50V |
2.5~500V |
| 設置范圍 |
0~15.3V |
0~153V |
0~51V |
0~510V |
| 分辨率 |
0.5mV |
5mV |
1mV |
10mV |
| 精確度 |
(T *1)± (0.1% of set + 0.1% of F.S) (Full scale of Low range) |
(T *1)± (0.1% of set + 0.1% of F.S) (Full scale of High range) |
(T *1)± (0.1% of set + 0.1% of F.S) (Full scale of Low range) |
(T *1)± (0.1% of set + 0.1% of F.S) (Full scale of High range) |
| CP模式 | 范圍 |
0W-30W(6A) |
0W-300W(60A) |
0W-30W(1.5A) |
0W-300W(15A) |
| 設置范圍 |
0W-30.6W |
0W-306W |
0W-30.6W |
0W-306W |
| 分辨率 |
1mW |
10mW |
1mW |
10mW |
| 精確度 |
(T *1)±(0.6 % of set + 1.4 % of f.s (Full scale of H range)) +
Vin^2/500 kΩ |
(T *1)±(0.6 % of set + 1.4 % of f.s (Full scale of H range)) +
Vin^2/500 kΩ |
| 動態模式 |
| 通用 | T1& T2 |
0.05mS - 30mS / Res : 1uS; 30mS - 30S / Res : 1mS |
0.05mS - 30mS / Res : 1uS; 30mS - 30S / Res : 1mS |
| 精確度 |
1uS / 1mS ± 200ppm |
1uS / 1mS ± 200ppm |
| 斜率(精度10%) |
0.001~0.25A/uS |
0.01~2.5A/uS |
0.25mA~62.5mA/uS |
2.5mA~625mA/uS |
| 斜率分辨率 |
0.001A/uS |
0.01A/uS |
0.25mA/uS |
2.5mA/uS |
| 斜率設置精度 |
±(10% + 15us)* Time to reach from 10% to 90% when the current is
varied from 2% to 100% (20% to 100% in L range) of the rated
current. |
| CC模式 | 范圍 |
0~6A |
0~60A |
0~1.5A |
0~15A |
| 設置范圍 |
0~6.12A |
0~61.2A |
0~1.53A |
0~15.3A |
| 電流分辨率 |
0.2mA |
2mA |
0.05mA |
0.5mA |
| 電流精確度 |
±0.8% F.S. |
|
±0.8% F.S. |
|
| CR模式 | 范圍 |
60S-0.002S(0.01666Ω~500Ω)(300W/15V);6S-0.0002S(0.1666Ω -5kΩ
)(300W/150V) |
6S-0.0002S(0.16666Ω~5KΩ)(300W/50V);0.6S-0.00002S(1.6666Ω -50kΩ
)(300W/500V) |
| 設置范圍 |
60S-0.002S(0.01666Ω~500Ω)(300W/15V);6S-0.0002S(0.1666Ω -5kΩ
)(300W/150V) |
6S-0.0002S(0.16666Ω~5KΩ)(300W/50V);0.6S-0.00002S(1.6666Ω-50kΩ
)(300W/500V) |
| 設置范圍 |
30000 steps |
30000 steps |
